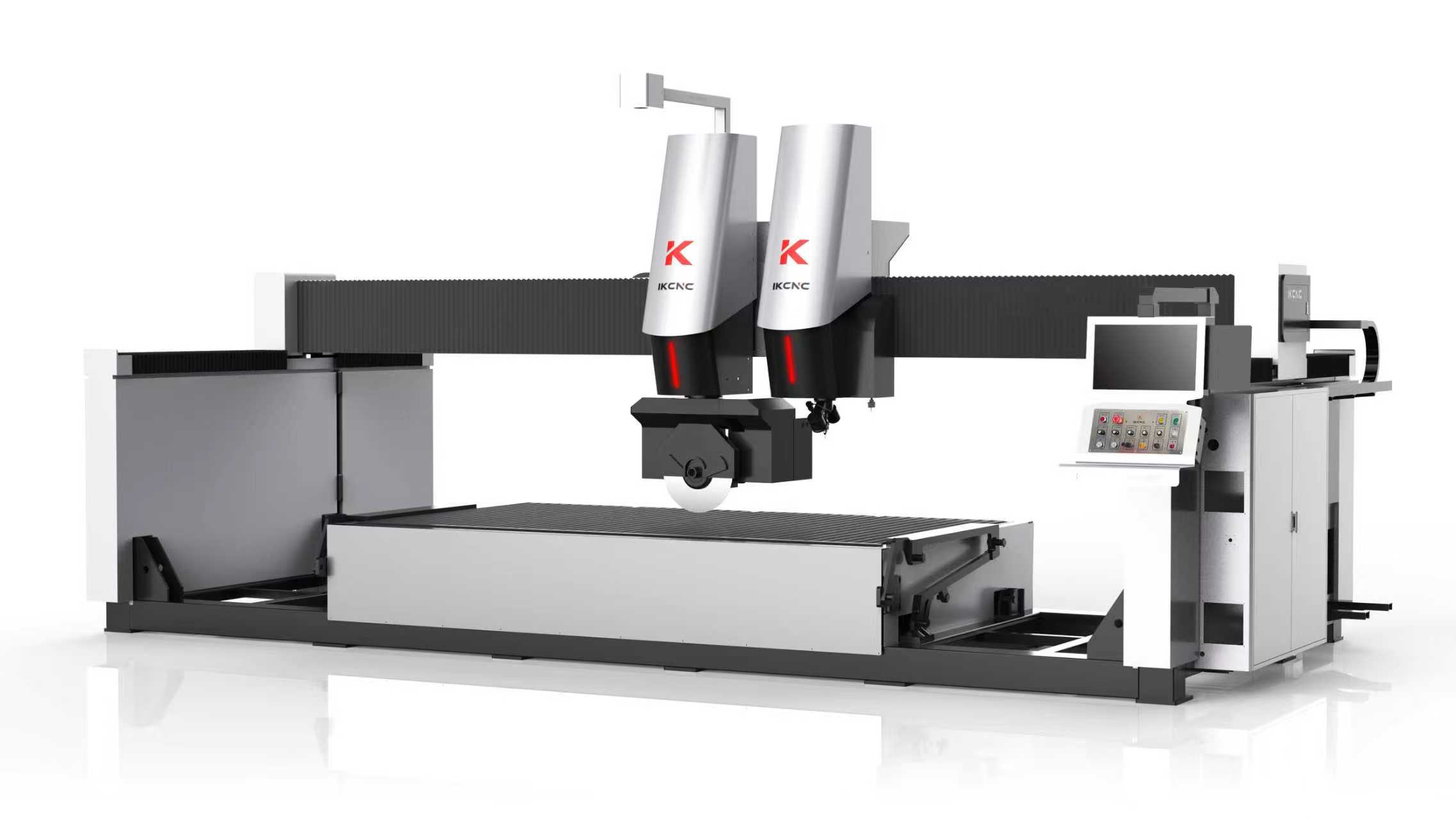

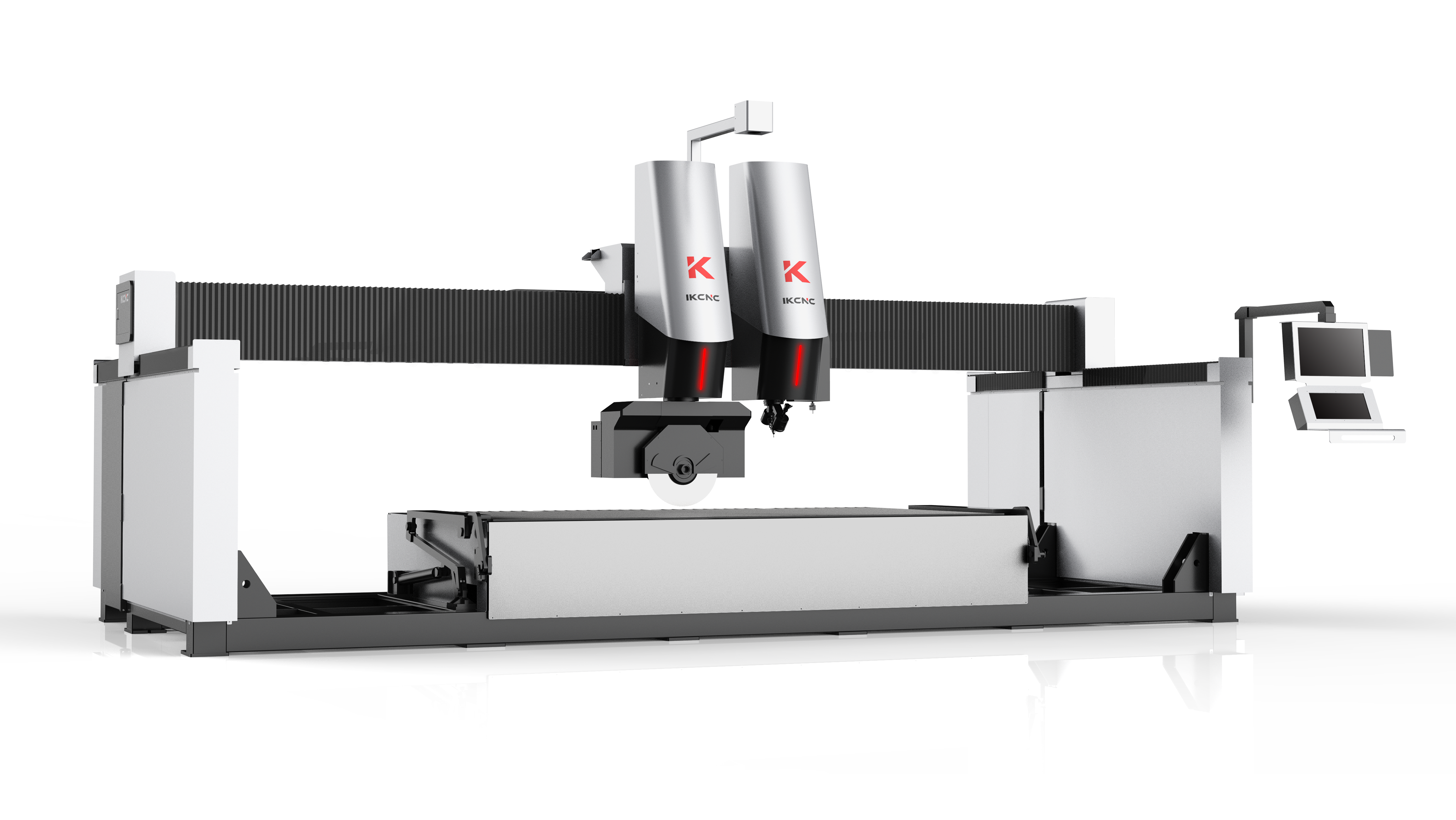

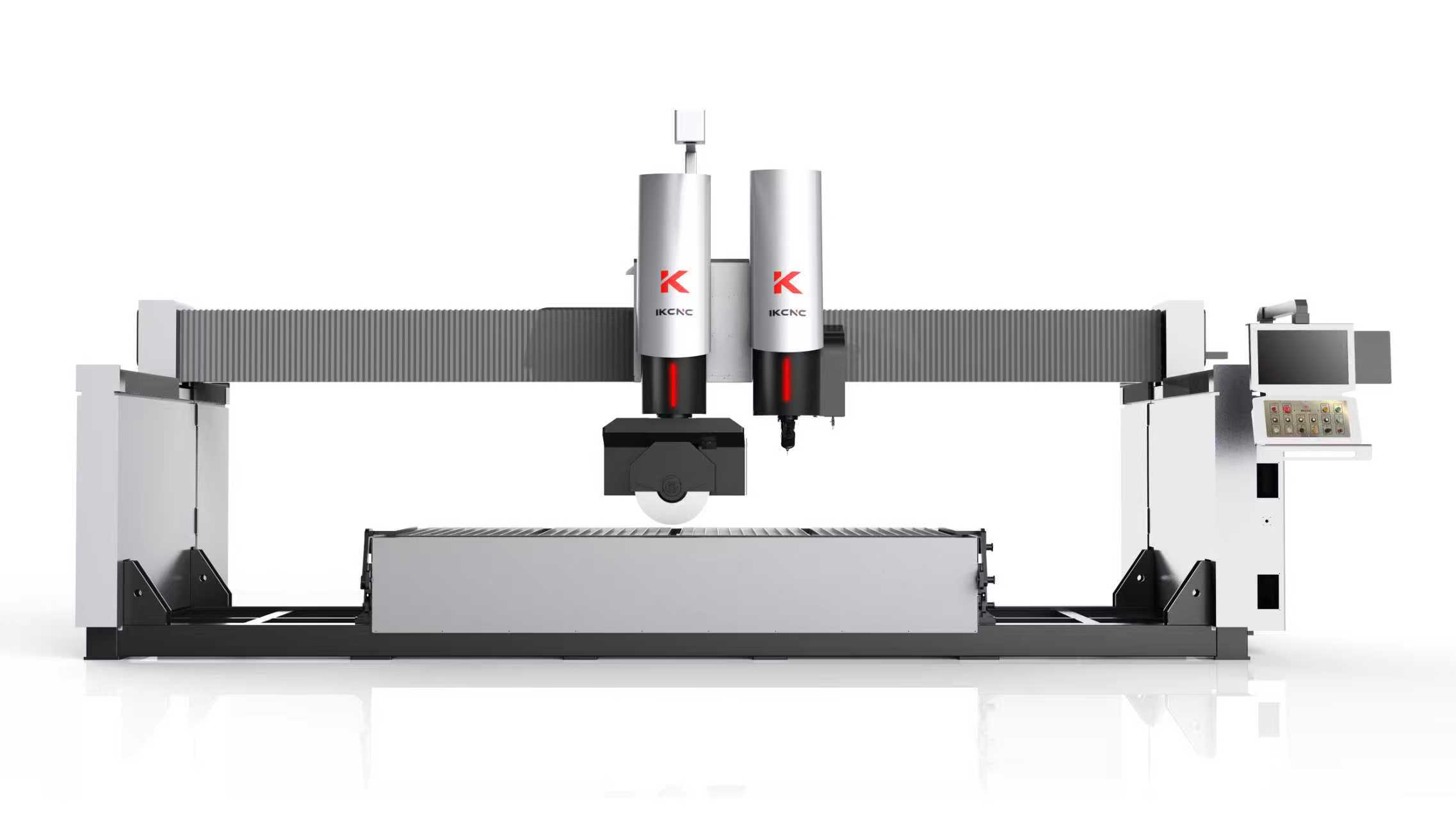

This 5-axis integrated Sawjet machine combines all the functions of the most advanced bridge saw and waterjet:5-axis bridge cutting, +1 drilling & engraving motor, Laser Slab Height Measuring, vacuum suction cup system,camera, 5-axis AC waterjet, sandblasting head, 85° tilting worktable, etc.It adopts EasyStone NC, the advanced CAD/CAM software from Italy's DDX company.

FUNCTION OF HIGH-PRESSURE PUMP

The high-pressure pump adopts an independent 50 HP high-pressure system design, with foreign originalimported parts, featuring high working pressure and stable performance. The large-capacity accumulator withhard seal technology ensures continuous and stable output pressure. The system is equipped with automaticmonitoring for hydraulic oillevel, hydraulic oil temperature, and automatic detection of inlet water pressure, plusan emergency stop button, making operation simple and convenient. Single-cylinder double-acting reciprocatingplunger intensifier configuration:

• Maintenance-free high-pressure water accumulator with hard seal technology to maintain constant output pressure

• Plate heat exchanger for optimal heat dissipation

• Plate cooler ensures optimal heat dissipation effect

• Cooling system can be equipped with chiller or cooling tower

• Simplified high-pressure end /durable screw design for easy disassembly and quick seal maintenance Automatically controlled high-pressure safety unloading valve Water filtration system

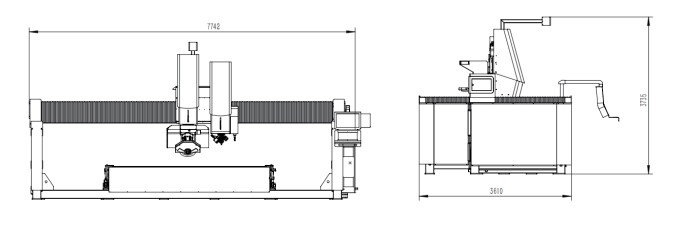

MACHINE DIMENSIONS

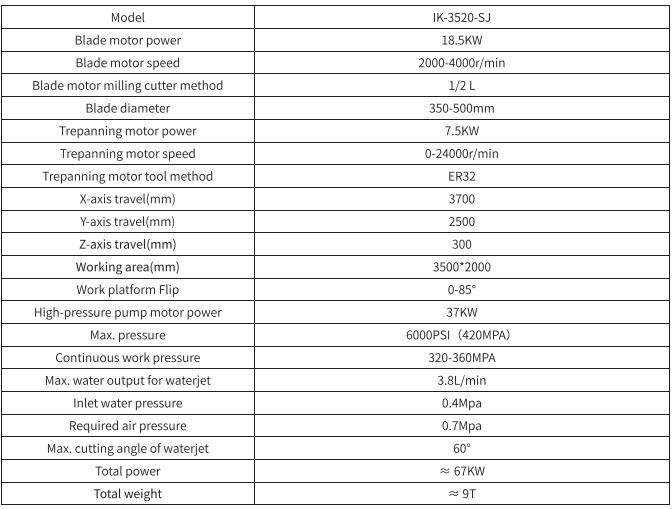

TECHNICAL DATA
